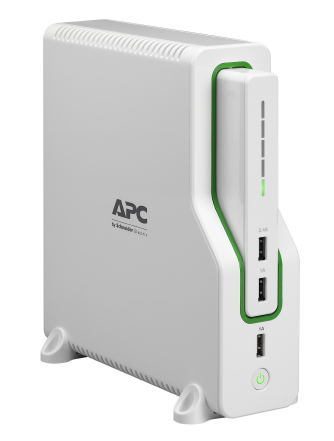

APC Back-UPS Connect 50, 120V, Lithium Ion, Network Backup and Mobile Power Pack
APC Back-UPS Connect, 50 Watts /84 VA, Input 120V /Output 120V
Includes: Country-specific detachable power cord, Removable mobile power pack, Removable support feet, Stabilization / Wall mounting feet, USB cable, User Manual
This product is not available for purchase in Australia. Please Contact Us for assistance with an appropriate solution.
*Please note: Product descriptions, specifications and part numbers have been sourced from www.apc.com and may refer to the US products which differ from products which will be supplied in Australia. Data sheets can be provided upon request for the Australian equivalent to these products.
Extended Runtime UPS for Network Gateway Devices
Back-UPS Connect is an innovative UPS product family that is designed to power networking equipment for prolonged periods of time during blackouts. Run a router, modem and other low-power devices for 3 to 5 hours during a power outage. Access to the internet is a critical component of our personal and professional lives. Unfortunately, power outages break our lines of communication for business operations, news and weather updates, and restrict us from contacting friends and family. At APC by Schneider Electric, we understand the network is critical to your everyday life. Back-UPS Connect will keep your network running, even when the power goes out.
Power outages can happen quite often, ranging from brief interruptions to long-lasting storms. When the power is out, your network cannot connect to the internet. This makes it difficult to get in touch with the outside world for personal or work communication. The BGE50ML features a lithium-ion battery pack that provides hours of critical power to your network during outages.
- Get news updates
- Make phone/video calls
- Check email
- Update social media
- Maintain home automation and security systems
- Stream movies
- Continue gaming
The BGE50ML's lithium ion battery is also a removable mobile power pack (M12USWH), so you can charge your mobile devices on the go. Stay connected throughout life's journeys with the BackUPS Connect BGE50ML.
- 2+ hours of network backup power keeps you connected to the internet during storms and outages.
- Removable battery pack charges a smartphone five times before needing to recharge itself.
- Convenient mobile charging via three USB ports, including a smart charging port that recognizes connected devices to maximizes charging speed.
- Surge, spike and lightning protection ensures peace of mind.
- Flexible installation for any home or office setup. The BGE50ML includes rotating outlets and versatile feet for wall mounting.
Features & Benefits:
|Lithium-ion battery||Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.|
|USB charging ports||Simultaneously charge mobile devices, including smartphones and tablets.|
|Mobile device compatible||Mobile power packs recharge all devices that connect to power using a USB cable, including your mobile phone, tablet, audio player, handheld gaming console, and e-reader.|
|Pass-through charging||Charge your mobile power pack and connected devices simultaneously.|
|Removable mobile power pack||Remove the power pack for convenient mobile charging when you're on the go. This compact, portable battery charges a smartphone five times from 0 to 100 percent before it needs to be recharged itself.|
|Rotating outlets||Flexible installation for any home or office setup.|
|Smart charging port||A 2.4 amp USB port integrates Smart Charging technology to maximize charging speeds according to the type of device detected.|
|Fast recharge||The removable mobile power pack charges in under 2.5 hours when docked in the base unit, so you always have network or mobile power when you need it.|
|Adjustable voltage sensitivity||Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.|
|Battery backup and surge protection||Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.|
|Simple battery replacement||Increases UPS availability by allowing quick, easy battery replacement.|
|Resettable circuit breaker||Easy recovery from overloads; no need to replace a fuse.|
|LED status display||Quickly understand unit and power status with visual indicators.|
|Output Power Capacity||50 Watts / 84 VA|
|Max Configurable Power||50 Watts / 84 VA|
|Nominal Output Voltage||120V|
|Output Frequency (sync to mains)||50/60Hz +/- 3 Hz|
|Waveform Type||Stepped approximation to a sinewave|

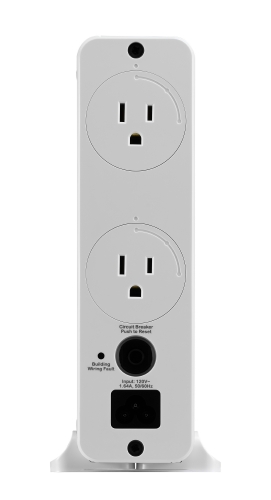

|Output Connections||(2) NEMA 5-15R (Battery Backup)|
|Nominal Input Voltage||120V|
|Input Frequency||50/60 Hz +/- 3 Hz (auto sensing)|
|Input Connections||NEMA 5-15P|
|Cord Length||5 feet (1.52 meters)|
|Input voltage range for main operations||92 - 139V|
|Maximum Input Current||2A|
|Input Breaker Capacity||4 A|

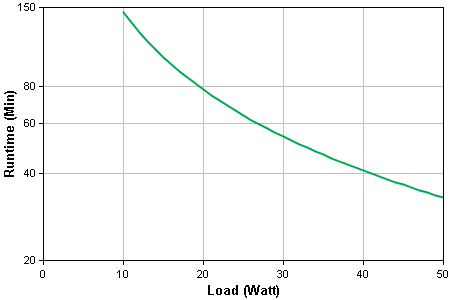

|Batteries & Runtime|
|Typical recharge time||2.50 hour(s)|
Hover over the line on the graph above to view the efficiency at any desired load
Curve fit of data measured in accordance with the ENERGY STAR Program Requirements Product Specification for Uninterruptible Power Supplies (UPSs) - Eligibility Criteria Version 1.0. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
|Communications & Management|
|Control Panel||LED Status display with On Line : On Battery|
|Surge Protection and Filtering|
|Surge Energy Rating||340 Joules|
|Maximum Height||2.13 inches (54 mm)|
|Maximum Width||7.72 inches (196 mm)|
|Maximum Depth||7.01 inches (178 mm)|
|Net Weight||2.87 lbs. (1.30 kg)|
|Shipping Weight||3.97 lbs. (1.80 kg)|
|Shipping Height||2.57 inches (65 mm)|
|Shipping Width||13.43 inches (341 mm)|
|Shipping Depth||9.19 inches (233 mm)|
|Master Carton Weight||8.62 lbs. (3.91 kg)|
|SCC Codes||1073130431409 4|
|Units per Pallet||80.00|
|# of Layers per Pallet||4|
|# of Units per Layer per Pallet||20|
|Pallet Weight||66.14 lbs. (30.00 kg)|
|Operating Environment||32 - 104°F (0 - 40°C)|
|Operating Relative Humidity||0 - 95%|
|Operating Elevation||0-10000 feet (0-3000 meters)|
|Storage Temperature||5 - 113°F (-15 - 45°C)|
|Storage Relative Humidity||0 - 95%|
|Storage Elevation||0-50000 feet (0-15000 meters)|
|Audible noise at 1 meter from surface of unit||32.00 dBA|
|Regulatory Approvals||California (CEC) Battery Charger, cTUVus, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-8, EN61000-4-2, EN61000-4-3, FCC Part 15 Class B, ICES-003, UN 38.3|
|Standard Warranty||3 years repair or replace|
|Sustainable Offer Status|
|REACH||REACH: Contains No SVHCs|
**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
Download the APC BGE50ML Datasheet (.PDF)
