APC Rack Air Removal Unit
Rack Air distribution for power dense racks and low pressure areas

NetShelter 600mm enclosures

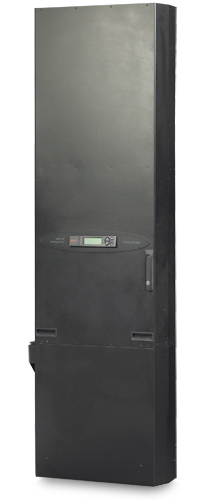

NetShelter 600mm enclosures
NetShelter 750mm enclosures

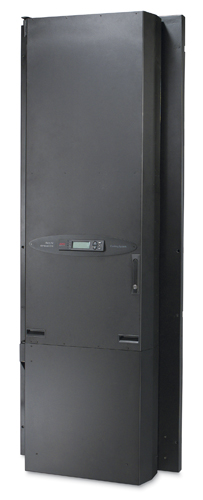

NetShelter 750mm enclosures

Includes: Documentation CD, Installation guide, Operations and maintenance manual

APC Products
APC Rack Air Removal Unit
APC Rack Air Removal Unit SX 100-240V 50/60HZ for NetShelter 600mm enclosures
#ACF400
List Price: $5,950.00
Our Price: Request a Quote
APC Rack Air Removal Unit SX 100-240V 50/60HZ for NetShelter 750mm enclosures
#ACF402
List Price: $6,325.00
Our Price: Request a Quote
*Please note: Product descriptions, specifications and part numbers have been sourced from www.apc.com and may refer to the US products which differ from products which will be supplied in Australia. Data sheets can be provided upon request for the Australian equivalent to these products.

Rack Air Removal Unit SX 100-240V 50/60HZ:

High-density equipment creates an environment where traditional air distribution methods are often not effective. Densely packed enclosures can cause IT equipment to overheat, resulting in downtime. The Rack Air Removal Unit SX captures exhaust heat, returns the warm air to the plenum and eliminates hot spots from the data center. Through automatic fan speed control based upon temperature, the fans will self-adjust for optimal performance. With a unit-mounted LCD display, users can view temperatures at the rack, monitor alarm conditions and adjust unit set points. The integrated network management card allows for remote monitoring and control. This space-saving solution mounts to the back of either the NetShelter SX or VX enclosure, requiring zero U space.

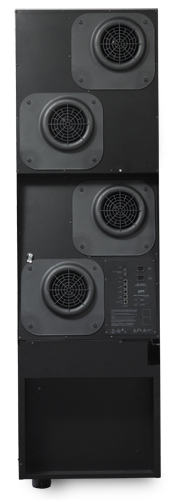

APC Rack Air Removal Unit Rear

Features & Benefits:

Availability
Dual fans Provides fault tolerance in the event of a fan failure.
Minimizes Air Mixing Delivers cool, conditioned air directly from the raised floor to the inlet of the IT equipment.
Agility
Air Filtration Removes dirt and other particulates from the intake air for cleaner supply air.
Fan control switches Users can turn one or both fans on and off depending on the heat load.
Mounting rails Adjustable depth allows the unit to fit APC NetShelter enclosures or other 19" EIA-310-D enclosures.
Fan guards A safety measure that provides protection from the fan opening by covering the inlet.
Total Cost of Ownership
Dual A-B Power Inputs Draws power from the UPS for power protection with dual feeds for redundancy.

Product Views:

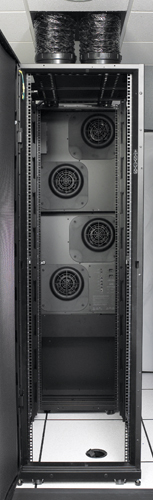

Appliance input rear of NetShelter enclosures

Appliance input rear of NetShelter enclosures

Technical Specifications:

General
Cooling Capacity Options 16.50 kW
Air Discharge Patterns Upflow,Ducted
Air Flow 1600 CFM
Input
Nominal Input Voltage 100V,120V,200V,208V,230V
Input Power 1200 Watts
Input Frequency 50/60 Hz
Input Connections

IEC-320 C14
NEMA 5-15P

Communications & Management
Control panel Multi-function LCD status and control console
Physical
Maximum Height NetShelter 600mm enclosures: 75.50 inches (1918 mm)
NetShelter 750mm enclosures: 75.50 inches (1918 mm)
Maximum Width NetShelter 600mm enclosures: 23.50 inches (597 mm)
NetShelter 750mm enclosures: 29.00 inches (737 mm)
Maximum Depth NetShelter 600mm enclosures: 10.00 inches (254 mm)
NetShelter 750mm enclosures: 10.00 inches (254 mm)
Net Weight NetShelter 600mm enclosures: 148.00 lbs. (67.26 kg)
NetShelter 750mm enclosures: 170.00 lbs. (77.27 kg)
Shipping Weight NetShelter 600mm enclosures: 198.00 lbs. (90.00 kg)
NetShelter 750mm enclosures: 222.00 lbs. (100.91 kg)
Color Black
Environmental
Operating Environment 32 - 122°F (0 - 50°C)
Storage Temperature 32 - 122°F (0 - 50°C)
Operating Relative Humidity 0 - 95%
Storage Relative Humidity 0 - 95%
Storage Elevation 0-15000 feet (0-4500 meters)
Audible noise at 1 meter from surface of unit 79.00 dBA
Conformance
Regulatory Approvals cUL Listed,CE,EN 55022 Class A,EN 55024,FCC Part 15 Class A,ICES-003,IEC 61000-3-2,IEC 61000-3-3,UL Listed,VDE,VCCI
Standard Warranty 1 year (parts only)
