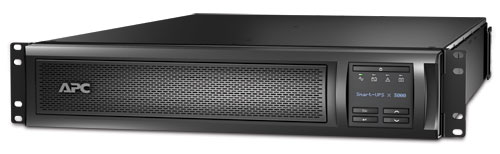

APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V
APC Smart-UPS, 2700 Watts / 3000 VA,Input 120V / Output 120V, Interface Port SmartSlot, Extended runtime model, Rack Height 2 U
This product is not available for purchase in Australia. Please Contact Us for assistance with an appropriate solution.
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
*Please note: Product descriptions, specifications and part numbers have been sourced from www.apc.com and may refer to the US products which differ from products which will be supplied in Australia. Data sheets can be provided upon request for the Australian equivalent to these products.
Smart-UPS X Series
Smart-UPS X is an intelligent, long run time UPS for IT and telecom professionals who need their critical servers and communication systems to ride through power outages that could last hours. More efficient than on-line UPS's and easier to deploy than generators, the Smart-UPS X has the ability to accept external batteries at any time to increase availability and because it is a Smart-UPS, you know it is reliable.
APC by Schneider Electric's Smart-UPS is the most popular uninterruptible power supply (UPS) in the world for servers and other network devices such as switches, routers workstations and point-of-sale devices. Available in either traditional tower, rack optimized, or extended run convertible form factor (750va-3000va). The world's most popular network and server UPS.
Trusted by millions to protect critical data and equipment from power problems its proven line interactive design supplies clean and reliable network-grade power over a wide range of utility conditions. Conditions include surges, spikes, brownouts, blackouts and other transient conditions that can cause costly downtime, data loss or hardware damage.
Smart-UPS are known for their intelligence, monitoring and control capability. Users can actively manage power to their critical devices using an intuitive and interactive display, through the supplied PowerChute Business edition software or remotely with optional network management cards that plug directly into the unit's Smart-slot interface.
Patent pending "green" mode provides optimum reliability and efficiency of > 97% which saves utility and cooling costs without compromising availability.
Advanced battery management provides Temperature compensated charging which extends life and advanced algorithms proactively recommend battery replacement date. In addition, Switched Outlet Groups can allow users to Reboot Hung devices, shed non-critical loads to conserve runtime, and set sequenced startup/turn off.
Features & Benefits:
| Availability | |
| Boost and Trim Automatic Voltage Regulation (AVR) | Gives higher application availability by correcting low and high voltage conditions without using the battery. |
| Intelligent battery management | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Power conditioning | Protects connected loads from surges, spikes, lightning, and other power disturbances. |
| Temperature-compensated battery charging | Prolongs battery life by regulating the charge voltage according to battery temperature. |
| Automatic restart of loads after UPS shutdown | Automatically starts up the connected equipment upon the return of utility power. |
| Automatic self-test | Maximizes battery performance, life, and reliability through intelligent, precision charging. |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Manageability | |
| Network manageable | Provides remote management of the UPS over the network. |
| Audible alarms | Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. |
| LED status indicators | Quickly understand unit and power status with visual indicators. |
| Serial Connectivity | Provides management of the UPS via a serial port. |
| USB connectivity | Provides management of the UPS via a USB port (not available on all models). |
| Disconnected battery notification | Warns when a battery is not available to provide backup power. |
| Serviceability | |
| User-replaceable batteries | Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) |
| Hot-swappable batteries | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced |
| Predictive failure notification | Provides early-warning fault analysis ensuring proactive component replacement. |
| Resettable circuit breakers | Enables quick recovery from UPS overload events. |
| Adaptability | |
| Adjustable voltage-transfer points | Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. |
| Adjustable voltage sensitivity | Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. |
| Field-replaceable power distribution panel | Ensures compatibility with equipment that has different plug types. |
| Safety | |
| Safety-agency approved | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. |
Runtime Chart:
Click here for APC Smart-Ups XL Runtime Chart. (pop-up window)
Technical Specifications:
| Output | |
| Output Power Capacity | 2700 Watts / 3000 VA |
| Max Configurable Power | 2700 Watts / 3000 VA |
| Nominal Output Voltage | 120V |
| Efficiency at Full Load | 98% |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal |
| Waveform Type | Sine wave |

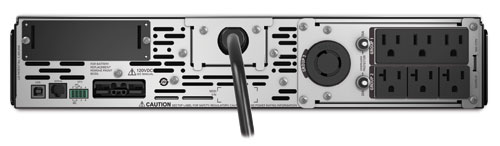

| Output Connections |  (6) NEMA 5-15R (2) NEMA 5-20R(1) NEMA L5-30P  |
| Input | |
| Nominal Input Voltage | 120V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections | NEMA L5-30P |
| Cord Length | 8 feet (2.44 meters) |
| Transfer Time | 2-4 ms |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time | 3 hour(s) |
| Extended Run Options | APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V |
| RBC™ Quantity | 1 |
| Replacement Battery | APCRBC117 |
| Communications & Management | |
| Interface Port(s) | SmartSlot |
| Available SmartSlot™ Interface Quantity | 1 |
| Control panel | LED status display with On Line : On Battery : Replace Battery and Overload indicators,Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Yes |
| Surge Protection and Filtering | |
| Surge Energy Rating | 540 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 3.36 inches (85 mm) |
| Maximum Width | 17.00 inches (432 mm) |
| Maximum Depth | 26.26 inches (667 mm) |
| Net Weight | 84.60 lbs. (38.45 kg) |
| Shipping Weight | 99.79 lbs. (45.36 kg) |
| Shipping Height | 9.58 inches (243 mm) |
| Shipping Width | 23.48 inches (596 mm) |
| Shipping Depth | 34.23 inches (869 mm) |
| Color | Black |
| Units per Pallet | 8.00 |
| Rack Height | 2U |
| Environmental | |
| Operating Environment | 32 - 104°F (0 - 40°C) |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 5 - 113°F (-15 - 45°C) |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit | 55.00 dBA |
| Online Thermal Dissipation | 276.00 BTU/hr |
| Conformance | |
| Regulatory Approvals | BSMI,CSA,EN 50091-2,EN 55022 Class A,FCC Part 15 Class A,NOM,TUV,UL 1778,VCCI Class A |
| Standard Warranty | 3 years repair or replace (excluding battery) and 2 year for battery,optional on-site warranties available,optional extended warranties available |
| Equipment protection policy | Lifetime: $150,000 |
| Environmental Compliance | RoHS 7b Exemption,REACH: Contains No SVHCs |
