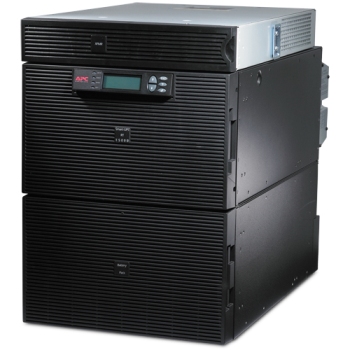

APC Smart-UPS RT 20KVA RM 208V, 208V/120V 5KVA Step-Down Transformer
APC Smart-UPS On-Line, 12 kW / 15 kVA,Input 208V / Output 120V, 208V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot, Extended runtime model, Rack Height 14U

APC Smart-UPS RT 20KVA RM 208V, 208V/120V 5KVA Step-Down Transformer

This product is not available for purchase in Australia. Please Contact Us for assistance with an appropriate solution.


*Please note: Product descriptions, specifications and part numbers have been sourced from www.apc.com and may refer to the US products which differ from products which will be supplied in Australia. Data sheets can be provided upon request for the Australian equivalent to these products.

A versatile UPS developed for the harshest power conditions in the world.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

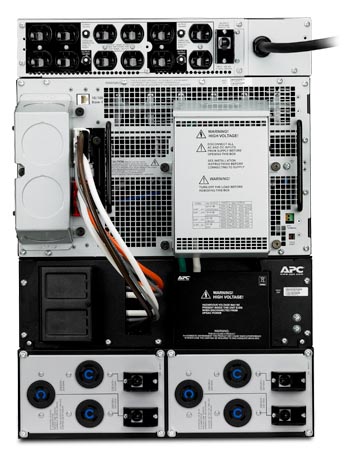

APC Smart-UPS RT 20KVA RM 208V, 208V/120V 5KVA Step-Down Transformer - Back View

Features & Benefits:

Availability
Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Scalable runtime Allows additional run time to be quickly added as needed.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
Network manageable Provides remote management of the UPS over the network.
InfraStruXure Manager compatible Enables centralized management via the APC InfraStruXure® Manager.
SmartSlot Customize UPS capabilities with management cards.
LED status indicators Quickly understand unit and power status with visual indicators.
Serial Connectivity Provides management of the UPS via a serial port.
Serviceability
User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notification Warns when a battery is not available to provide backup power.
Audible alarms Provides notification of changing utility power and UPS conditions.
Adaptability
Plug-and-Play external batteries Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Rack/Tower convertible Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Flash-upgradeable firmware Install maintenance releases of firmware remotely using FTP.
Protection
Frequency and voltage regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible Ensures clean, uninterrupted power to the loads in the event of an extended power outage.
Cold-start capable Provides temporary battery power when the utility power is out.
Resettable circuit breakers Easy recovery from overloads; no need to replace a fuse.
Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

Technical Specifications:

Output
Output Power Capacity 16k Watts / 20k VA
Max Configurable Power 16k Watts / 20k VA
Nominal Output Voltage 120V, 208V
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load 94%
Efficiency at Half Load 94%
Output Voltage Distortion Less than 5%
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor 3 : 1
Waveform Type Sine wave
Output Connections (1) Hard Wire 3-wire (2PH + G)
NEMA 5-20R(12) NEMA 5-20R


NEMA L6-20R(4) NEMA L6-20R


NEMA L6-30R(1) NEMA L6-30R
Input
Bypass Built-in Static Bypass, Internal Bypass (Automatic and Manual), Optional External Bypass
Nominal Input Voltage 208V
Input Frequency 50/60 Hz +/- 5 Hz (auto sensing)
Input Connections Hard Wire 3-wire (2PH + G)
Input voltage range for main operations 160 - 280V
Other Input Voltages 240
Maximum Input Current 105A
Input Breaker Capacity 125A
Input Total Harmonic Distortion Less than 5% for full load
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Included Battery Modules 4
Typical recharge time 2.50 hour (s)
Replacement battery cartridge RBC44
RBC™ Quantity 4
Nominal Battery Voltage +/-192 V (split battery referenced to neutral)
Discharge Battery Voltage +/-154 V
Efficiency in Battery Operation 93%
Typical Backup Time at Half Load 15.3 minutes (8000 Watts)
Typical Backup Time at Full Load 4.9 minutes (16000 Watts)
Runtime Chart Smart-UPS On-Line
Extended Run Options APC Smart-UPS RT 20KVA RM 208V, 208V/120V 5KVA Step down Transformer
Communications & Management
Interface Port(s) DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
Pre-Installed SmartSlot™ Cards AP9631
Control panel Multi-function LCD status and control console
Audible Alarm Audible and visible alarms : configurable delays
Emergency Power Off (EPO) Yes
Surge Protection and Filtering
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 24.48 inches (622 mm)
Maximum Width 17.00 inches (432 mm)
Maximum Depth 30.43 inches (773 mm)
Net Weight 640.00 lbs. (290.91 kg)
Shipping Weight 801.00 lbs. (364.09 kg)
Shipping Height 48.98 inches (1244 mm)
Shipping Width 24.02 inches (610 mm)
Shipping Depth 39.49 inches (1003 mm)
Color Black
Units per Pallet 1.00
Rack Height 14U
Environmental
Operating Environment 32 - 104°F (0 - 40°C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 5 - 113°F (-15 - 45°C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit 59.00 dBA
Online Thermal Dissipation 4320.00 BTU/hr
Conformance
Regulatory Approvals UL 1778
Standard Warranty 2 years repair or replace
**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
