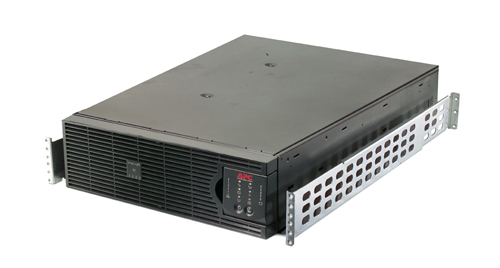

APC Smart-UPS RT 5000VA RM 208V to 208/120V
APC Smart-UPS On-Line, 4000 Watts / 5000 VA,Input 208V / Output 120V, 208V, Interface Port Smart-Slot, Extended runtime model, Rack Height 3U

This product is not available for purchase in Australia. Please Contact Us for assistance with an appropriate solution.

*Please note: Product descriptions, specifications and part numbers have been sourced from www.apc.com and may refer to the US products which differ from products which will be supplied in Australia. Data sheets can be provided upon request for the Australian equivalent to these products.

A versatile UPS developed for the harshest power conditions in the world.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features & Benefits:

Availability
Automatic internal bypass	Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Scalable runtime	Allows additional run time to be quickly added as needed.
Intelligent battery management	Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries	Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown	Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging	Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
Network manageable	Provides remote management of the UPS over the network.
InfraStruXure Manager compatible	Enables centralized management via the APC InfraStruXure® Manager.
SmartSlot	Customize UPS capabilities with management cards.
LED status indicators	Quickly understand unit and power status with visual indicators.
Serial Connectivity	Provides management of the UPS via a serial port.
Serviceability
User-replaceable batteries	Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Automatic self-test	Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predictive failure notification	Provides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notification	Warns when a battery is not available to provide backup power.
Audible alarms	Provides notification of changing utility power and UPS conditions.
Adaptability
Plug-and-Play external batteries	Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Rack/Tower convertible	Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Flash-upgradeable firmware	Install maintenance releases of firmware remotely using FTP.
Protection
Frequency and voltage regulation	Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Power conditioning	Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input power factor correction	Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible	Ensures clean, uninterrupted power to the loads in the event of an extended power outage.
Cold-start capable	Provides temporary battery power when the utility power is out.
Resettable circuit breakers	Easy recovery from overloads; no need to replace a fuse.
Safety-agency approved	Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

Runtime Chart:

Click here to view the Smart-UPS On-Line Runtime Chart. (pop-up window)

Technical Specifications:

Output
Output Power Capacity	4000 Watts / 5000 VA
Max Configurable Power	4000 Watts / 5000 VA
Nominal Output Voltage	120V/208V
Output Voltage Note	Configurable for 208 or 240 nominal output voltage
Efficiency at Full Load	90.00%
Output Voltage Distortion	Less than 5%
Output Frequency (sync to mains)	50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor	3 : 1
Waveform Type	Sine wave

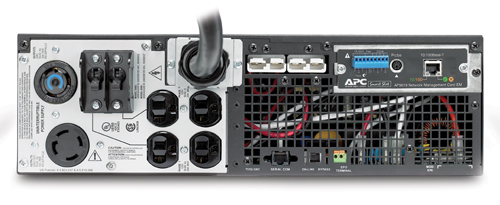

Output Connections	(4) NEMA 5-20R (1) NEMA L6-20R (1) NEMA L6-30R
Input
Bypass	Internal Bypass (Automatic and Manual)
Nominal Input Voltage	208V
Input Frequency	50/60 Hz +/- 5 Hz (auto sensing)
Input Connections	NEMA L6-30P
Cord Length	10 feet (3.05 meters)
Input voltage range for main operations	156 - 236V
Input voltage adjustable range for mains operation	86 - 154V
Other Input Voltages	240
Batteries & Runtime
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Included Battery Modules	2
Typical recharge time	2.50 hour (s)
Replacement battery cartridge	RBC44
RBC™ Quantity	1
Typical Backup Time at Half Load	15.1 minutes (2000 Watts)
Typical Backup Time at Full Load	4.8 minutes (4000 Watts)
Runtime Chart	Smart-UPS RT
Extended Run Options	APC Smart-UPS RT 5000VA RM 208V to 208/120V
Communications & Management
Interface Port(s)	Smart-Slot
Pre-Installed SmartSlot™ Cards	AP9616
Control panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)	Yes
Surge Protection and Filtering
Surge energy rating	365 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height	5.10 inches (130 mm)
Maximum Width	17.00 inches (432 mm)
Maximum Depth	26.00 inches (660 mm)
Net Weight	127.73 lbs. (58.06 kg)
Shipping Weight	158.66 lbs. (72.12 kg)
Shipping Height	13.68 inches (347 mm)
Shipping Width	23.73 inches (603 mm)
Shipping Depth	38.60 inches (980 mm)
Color	Black
Units per Pallet	6.00
Rack Height	3U
Environmental
Operating Environment	32 - 104°F (0 - 40°C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Temperature	5 - 113°F (-15 - 45°C)
Storage Relative Humidity	0 - 95%
Storage Elevation	0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit	55.00 dBA
Online Thermal Dissipation	1589.00 BTU/hr
Conformance
Regulatory Approvals	CSA,FCC Part 15 Class A,UL 1778
Standard Warranty	2 years repair or replace
